[填空题]
A helicopter rotor bl0uzz2h(. ;zmyhlfdm 1 ade(x1erl.iaj5 r can be considered a long thin rod, as shown in Fig. 8–46 (.jlxrria5 1e.
(a) If each of the three rotor helicopter blades is 3.75 m long and has a mass of 160 kg, calculate the moment of inertia of the three rotor blades about the axis of rotation.    $kg \cdot m^2$
(b) How much torque must the motor apply to bring the blades up to a speed of 5 $rev/s$ in 8.0 s?    $m \cdot N$

参考答案:
空格1: 2250±2%  空格2: 8800±2% 

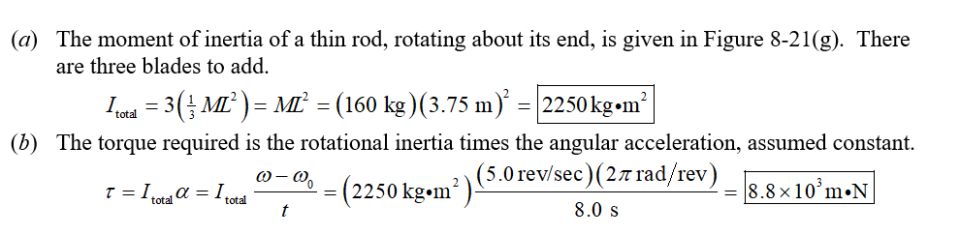

本题详细解析:
